  1. This is more to Azure Virtual WAN. Coverage of AZ-305 not AZ-104. Objective is for On-Premises to Azure connectivity.
  2. General Overview:
    • Azure VPN Gateway - Type of virtual network gateway that sends encrypted traffic between an Azure virtual network and an on-premises location.

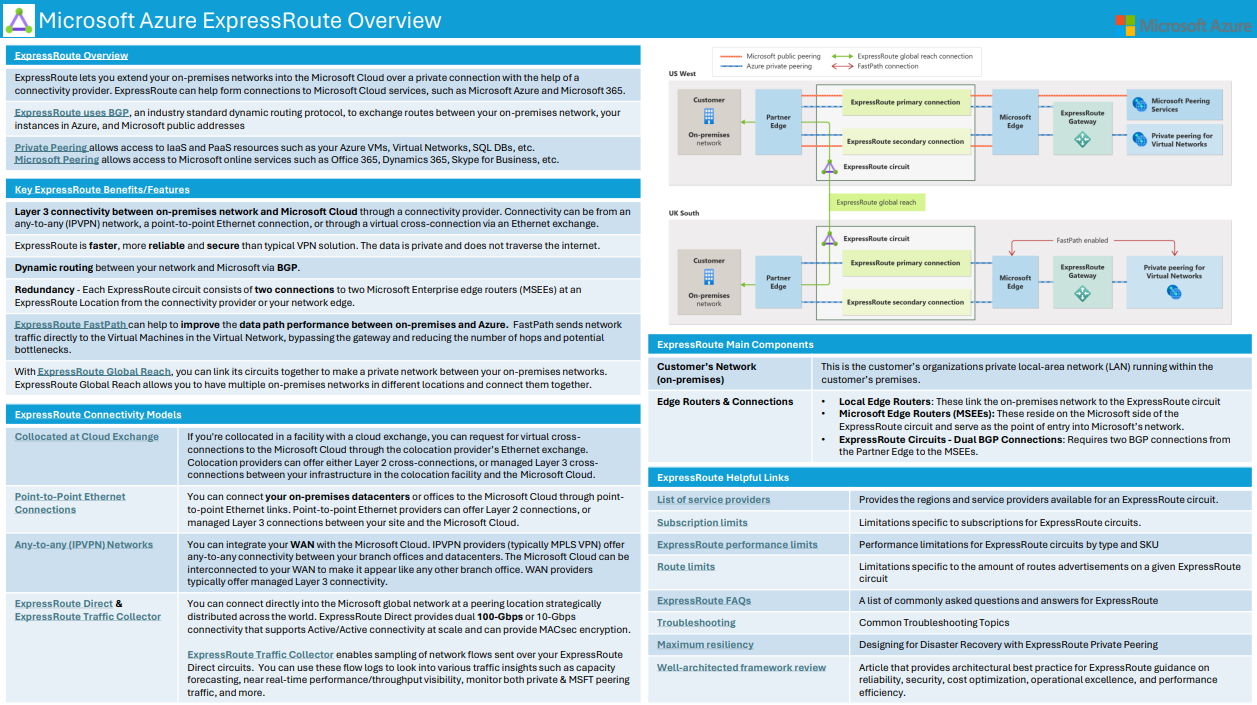

    • Azure Express Route - Azure ExpressRoute uses a private, dedicated connection through a non-Microsoft connectivity provider. The connection is established using a partner that has a direct peering with Microsoft. (Note: express route with VPN failover is more for high availability)
    • Azure Virtual WAN - centrally manage site-to-site VPN connections

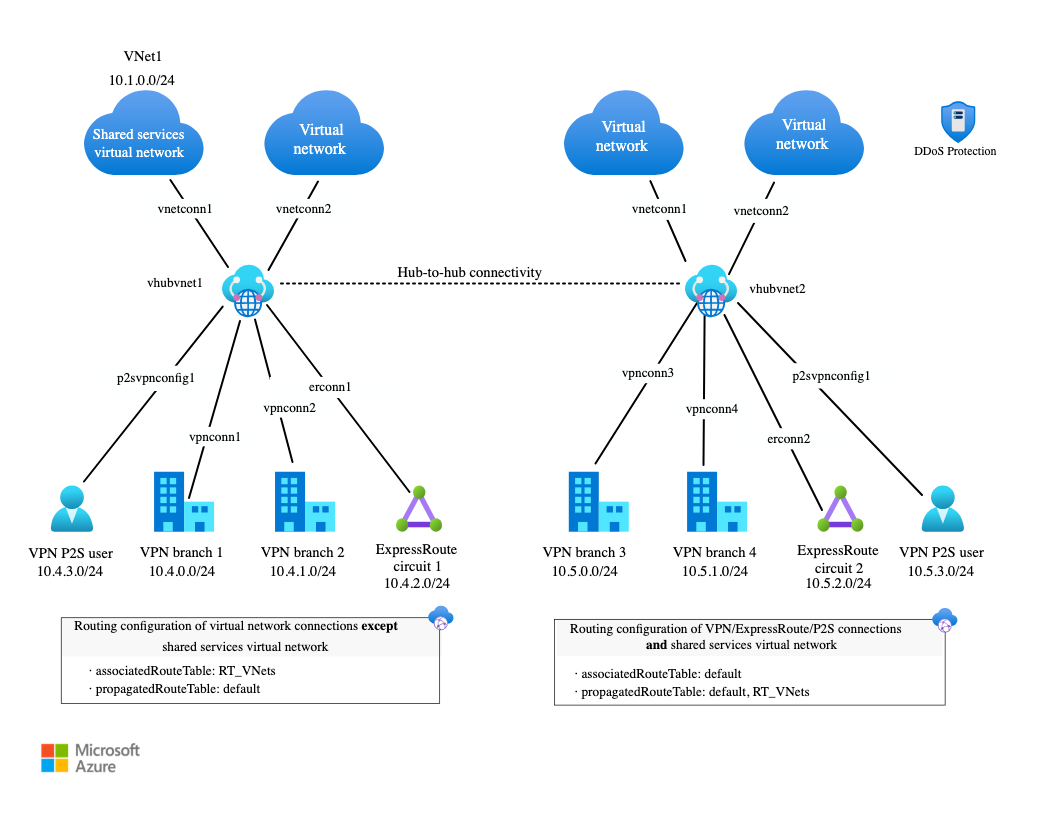

    • Hub & Spoke (modern Virtual WAN) - Hub & Spoke is a network topology that uses a central hub to connect multiple spokes, which are virtual networks that are connected to the hub

Diagram

Express Route VPN WAN Hub and Spoke

SKU for VPN Gateway

  1. Usage:
Service Point-to-Site Site-to-Site
Azure Supported Services Cloud Services and Virtual Machines Cloud Services and Virtual Machines
Typical Bandwidths Based on the gateway SKU Typically < 10 Gbps aggregate
Protocols Supported Secure Sockets Tunneling Protocol (SSTP), OpenVPN, and IPsec IPsec
Routing RouteBased (dynamic) We support PolicyBased (static routing) and RouteBased (dynamic routing VPN)
Connection resiliency active-passive or active-active active-passive or active-active
Typical use case Secure access to Azure virtual networks for remote users Dev, test, and lab scenarios and small to medium scale production workloads for cloud services and virtual machines
  1. SKU List (https://learn.microsoft.com/en-us/azure/vpn-gateway/vpn-gateway-about-vpngateways), Basic has no BGP the rest of SKU are based on speed.
